Suzuki Sidekick 3L30 TRANSMISSION

Image 13 of 17

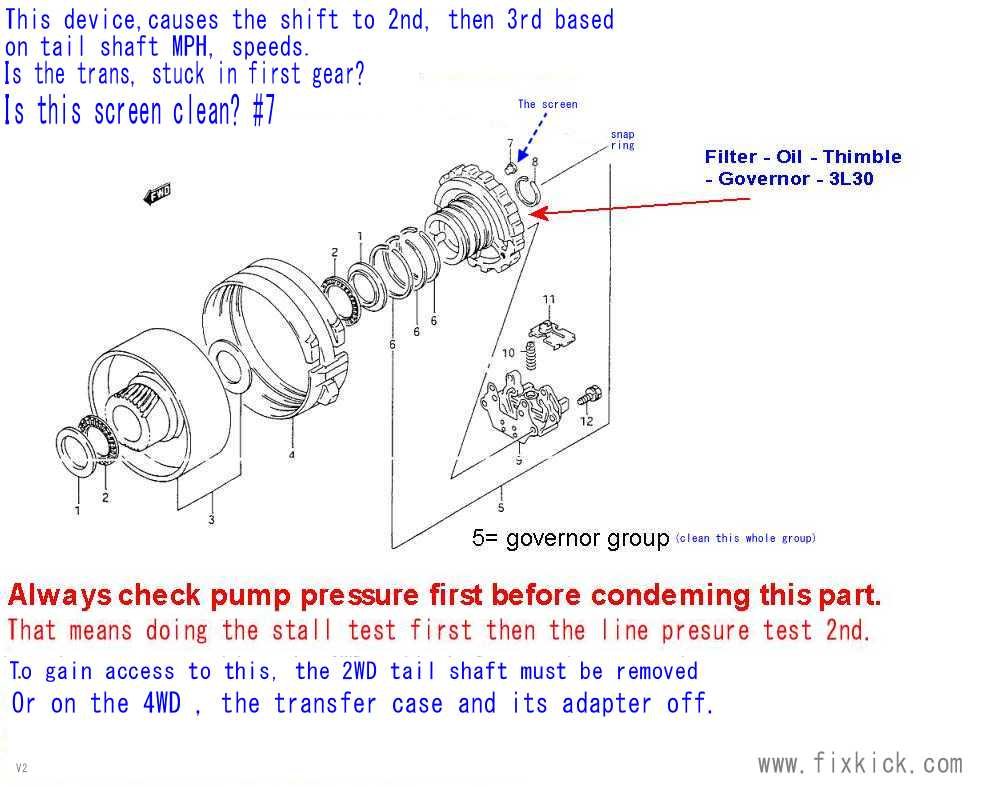

this is the Governor, it is a centrifugal device, that measures SPEED of the tail shaft. (RPM) and if it's dead, there will be no up shifts. It too, has a screen that loves to clog when not ATF serviced. See the blue lines , in photo 2 here. The band here is low band.
