Throttle body air supplies

Image 2 of 47

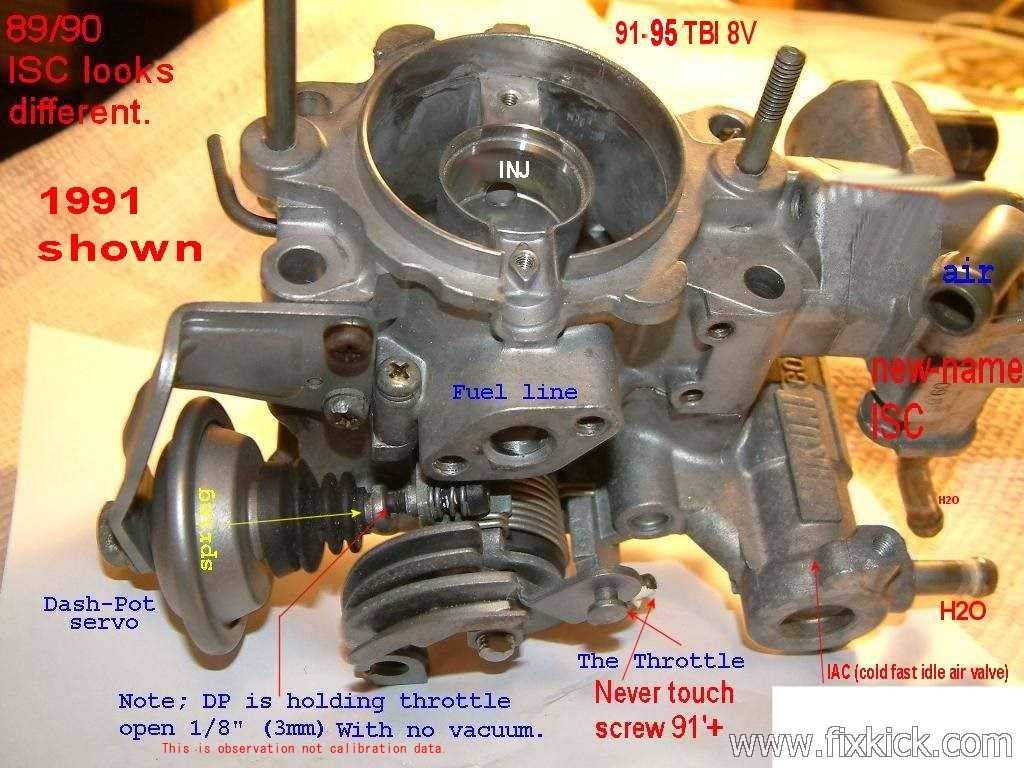

My Throttle body slide show. 8v TBI first The Dash Pot retracts at 30seconds max, after start , the TV is closed 99.9% , the IAC closes at 158F and the Bleed screw + ISC are the only air sources HOT. This old throttle body love to fail in many ways, Air leaks, all cause idle speed too high.
